As a new type of connector structure, magnetic connector are widely used in consumer electronics, medical equipment, industrial automation, smart wearables, military communications and other fields. Its core advantages lie in the characteristics of automatic adsorption, blind plugging, safe shedding and compact structure, making it more and more popular in modern equipment. However, with the increasing complexity of various application environments, especially the increase in outdoor, humid, dusty or highly polluted environments, higher requirements are placed on the waterproof performance of connectors. So, does the magnetic connector need a waterproof design? What are the necessity, application scenarios, technical implementation methods, challenges and future development trends of waterproof design?

1. Diversification of equipment use environment

Modern electronic products are no longer limited to indoor use environments, and a large number of devices need to work in the following scenarios:

Outdoor: such as drones, smart cycling equipment, industrial sensors;

Medical: such as wearable vital signs monitoring equipment, portable medical instruments;

Underwater or high humidity: such as diving watches, fishing gear electronic systems, water treatment equipment;

Polluted environment: such as mining areas, oil fields, and construction sites.

In these scenarios, water, moisture, dust, grease, salt spray, etc. may invade the inside of the connector, causing short circuits, corrosion, poor contact, arc breakdown, and even equipment damage.

Especially in high-power or medical scenarios, liquid entering the connector may cause:

Increased contact resistance, causing local heating;

Current leakage, causing malfunction or electric shock to the human body;

Corrosion of metal parts, shortening the life of the connector;

Forming a conductive path, causing short circuit or burning risks.

Therefore, waterproof design is not only a requirement to improve reliability, but also a safety guarantee.

1. Smart wearable devices

Smart watches, health bracelets, sports trackers and other products are often exposed to sweat, rain, and even need to be used when bathing or swimming. Waterproof magnetic charging interfaces can provide reliable connections without affecting the overall waterproof level of the product.

2. Medical equipment

Equipment such as blood glucose meters, portable respirators, and electroencephalogram monitoring devices are often used in human contact or disinfected environments. Waterproof design ensures that the equipment can withstand alcohol wiping, steam sterilization or contact with body fluids.

3. Industrial automation equipment

Sensors, robots, and controllers are deployed in high humidity, dusty, and oily mist environments, such as assembly lines, mines, and food processing plants. Waterproof magnetic connectors provide high-reliability interfaces to avoid frequent maintenance.

4. Military/field communication equipment

Outdoor communication terminals, backpack radios, radars, and other equipment often face extreme climates and complex terrains, and have extremely high requirements for the sealing performance of connectors.

1. Interface structure sealing design

a. O-ring

Add a high-elastic sealing ring (commonly used silicone and fluororubber) to the contact surface of the connector, which is compressed to form a sealing barrier when adsorbed and closed.

b. Multi-layer sealing structure

Use a multi-layer sleeve structure with embedded waterproof materials (such as TPU thermoplastic rubber) to achieve complex sealing isolation.

c. Waterproof port guidance

Designed with directional drainage channels and boss structures to guide liquid away from the core contact area and reduce the risk of water seepage.

2. Surface coating protection

The contact point surface is treated with a waterproof coating or a hydrophobic nano coating;

The interface structure shell is electroplated with an anti-corrosion layer (such as Ni-P alloy) to enhance corrosion resistance;

Filling colloids (such as epoxy resin) to strengthen sealing in non-moving parts.

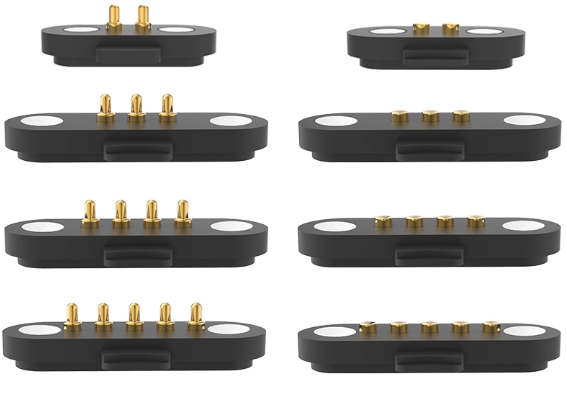

3. Contact design optimization

The spring Pogo Pin is embedded in a waterproof insulation shell;

Use a piezoelectric self-cleaning structure (such as a vibration-driven waterproof membrane) to disperse the liquid;

High-voltage point contact design can maintain a stable conductive path even in water vapor.

The waterproof design of magnetic connectors usually refers to the IEC 60529 standard, common grades

IV. Technical challenges faced by waterproof design

Although waterproof magnetic connectors have many advantages, they also face a series of challenges in the actual R&D and manufacturing process:

1. Magnetic force is limited by the thickness of the sealing material

Thickening of the sealing ring or coating may cause magnetic force attenuation and reduce adsorption reliability. Therefore, it is necessary to find a balance between magnetic flux intensity and sealing layer thickness.

2. Size and structure limitations

Compact devices have high requirements for interface size and limited space for embedded sealing structures. How to integrate efficient waterproof solutions in a small volume is a major problem.

3. Reduced mechanical durability

Over-reliance on soft material sealing may affect the plug-in life and stability of the connector, and the sealing ring may fail easily after fatigue or aging.

4. Cost increase

High protection grade materials and processes (such as laser welding, plasma cleaning, and waterproof film bonding) will increase manufacturing costs, which is not conducive to popularization in the low-end market.

Although the waterproof design is somewhat complex, it brings obvious overall system advantages:

Improve the protection level of the equipment (overall IP68 level);

Simplify user operation: direct charging or data transmission without removing the protective cover;

Reduce after-sales maintenance rate: prevent failure caused by liquid short circuit and corrosion;

Enhance market competitiveness: meet the expectations of high-end products for environmental adaptability;

Improve safety: especially important in medical, military and electric vehicle applications.

In the future, the waterproof performance of magnetic connectors will continue to improve, showing the following development trends:

1. Miniaturization and integrated design

By integrating the waterproof layer into the structural body, the ultimate miniaturization is achieved while ensuring the IP68 level.

2. Intelligent monitoring function

Develop intelligent magnetic connectors with humidity sensing or contact contamination monitoring functions to achieve autonomous early warning.

3. Application of new waterproof materials

New materials such as hydrophobic nanofilms, polymer waterproof gels, and liquid elastic coatings are gradually used in industrial-grade connectors.

4. Self-healing coating and intelligent closure

With the help of self-healing materials, the sealing layer can be automatically restored once it is damaged; or magnetically controlled liquid metal can be used to seal the port in a non-working state.

On the whole, whether magnetic suction connectors need waterproof design, the answer is yes, and it has become necessary and even critical in more and more applications. With the expansion of equipment application scenarios, users' requirements for safety, stability, and durability are increasing, and waterproof design has changed from "optional" to "must-have". Especially in wearable, medical, industrial, military and other fields with high requirements for environmental adaptability, magnetic suction connectors with good waterproof capabilities will become the mainstream of connection solutions.

Although waterproof design brings cost and technical challenges, with technological progress and material innovation, related problems will be gradually overcome. Manufacturers should weigh cost and performance according to specific application scenarios, select appropriate waterproof levels and structural solutions, and ensure the long-term stable operation of equipment and user safety.

The design of waterproof magnetic suction connectors not only reflects the integration of engineering and technical capabilities, but also represents the product's deep pursuit of "ultimate user experience". In the future, it will play an increasingly critical role in promoting trends such as intelligent equipment, outdoor use, and all-weather operation.
