In the realm of electrical connectors, pogo pins are essential components for ensuring reliable connections, especially in situations that require frequent mating and unmating cycles. Among the different types of pogo pins, right angle pogo pin have gained significant popularity due to their unique design and versatility. This guide will explain what right angle pogo pins are, their applications, advantages, and the specific situations where they are most useful.

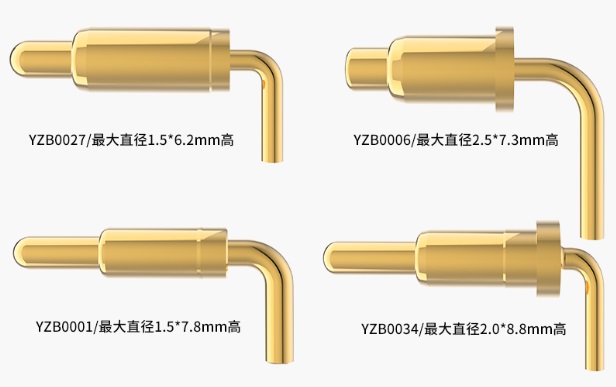

A right angle pogo pin is a type of pogo pin where the electrical contact is made at a 90-degree angle to the PCB (printed circuit board) or target surface. Unlike traditional straight pogo pins, which connect directly to the vertical surface of a PCB, right angle pogo pins are designed to align with the PCB in a horizontal orientation.

This unique design offers flexibility and compactness, especially in situations where space is limited or where the connection needs to be oriented differently for optimal performance. Right angle pogo pins maintain all the typical benefits of pogo pins, such as high reliability, low contact resistance, and durability, but their angled design allows for a wider range of applications.

Key Features of Right Angle Pogo Pins

Before delving into the situations where right angle pogo pins are used, it is important to highlight the key features that make them stand out from traditional pogo pins:

90-Degree Angle Orientation: The most distinctive feature of a right angle pogo pin is its right-angle configuration. This allows the contact pin to be oriented parallel to the PCB or target surface, making it ideal for space-constrained or unconventional design needs.

Contact and Spring Mechanism: Like other pogo pins, right angle pogo pins consist of a conductive pin, a spring mechanism for maintaining contact pressure, and an outer casing. The spring pushes the pin toward the mating surface, ensuring a reliable electrical connection.

Versatile Mounting Options: Right angle pogo pins can be mounted onto PCBs in a variety of ways, depending on the design. They can be through-hole mounted or surface-mounted, making them suitable for different manufacturing processes.

Durability and Longevity: Right angle pogo pins are designed to withstand repeated mating and unmating cycles without significant degradation of performance. This makes them ideal for testing and maintenance applications.

Right angle pogo pins offer several advantages that make them the preferred choice in certain applications. These benefits include:

1. Space Efficiency and Compact Design:

   The right-angle design allows the pogo pin to connect to a PCB horizontally, taking up less vertical space. This is particularly useful in applications where height restrictions are a concern, such as in mobile devices, portable electronics, or compact testing systems. The ability to save space is a major advantage in modern electronics where compactness is key.

2. Enhanced Flexibility:

   The 90-degree orientation of the right angle pogo pin allows for greater flexibility in terms of layout. Designers have more freedom to place connectors in configurations that are difficult to achieve with standard straight pogo pins. This is particularly important in systems that have complex form factors or limited real estate for component placement.

3. Improved Mechanical Stability:

   In many cases, right angle pogo pins provide better mechanical stability compared to vertical pogo pins. Since the contact is made horizontally, there is less stress on the PCB during mating and unmating cycles. This can reduce the risk of PCB damage, especially when using delicate or thin boards.

4. Better Alignment for Surface-Mount Applications:

   Right angle pogo pins are often used in surface-mount technology (SMT) applications. This design helps achieve more accurate alignment with the mating surface, especially when the connector needs to be placed close to the edge of the PCB. The right-angle configuration allows for a more controlled mating process.

5. Ease of Manufacturing:

   Right angle pogo pins can be mounted onto PCBs in a way that minimizes the complexity of the assembly process. This design is ideal for automated manufacturing systems where horizontal placement of connectors can lead to faster assembly and reduced production costs.

Right angle pogo pins are used in a variety of applications where the combination of space efficiency, mechanical stability, and flexibility are essential. Some common use cases include:

 1. Automated Test Equipment (ATE)

One of the most common applications of right angle pogo pins is in automated test equipment (ATE). ATE systems are used to test the functionality of electronic components or devices, and they often require connectors that can repeatedly mate and unmate with minimal wear. In these systems, right angle pogo pins are often used to interface with the device under test (DUT) or to connect various test fixtures.

Space Optimization: ATE systems often require connectors to be placed in compact spaces. Right angle pogo pins help optimize the layout of connectors, allowing for more efficient use of space while still ensuring a reliable electrical connection.

Multiple Connection Points: ATE systems may need to establish connections with multiple points on the DUT. Right angle pogo pins allow for flexible layouts that can accommodate a variety of interconnect needs.

 2. Battery Testing and Charging Stations

Right angle pogo pins are widely used in battery testing and charging stations for mobile devices, power tools, and electric vehicles. The pogo pins provide a reliable way to make contact with the battery terminals while minimizing the space required for the connector assembly.

Efficient Charging: The right-angle design allows the connector to be placed in a way that facilitates optimal alignment with the battery terminals, ensuring a secure and consistent connection for charging.

Compact Designs: In battery testing stations, space is often at a premium. Right angle pogo pins can be placed in tight spaces without compromising the connection’s reliability.

 3. Consumer Electronics

In consumer electronics, especially mobile devices such as smartphones, tablets, and wearables, the internal space is often at a premium. Right angle pogo pins are used in applications such as:

Docking Stations: Right angle pogo pins are commonly used in docking stations where the device is aligned horizontally with the connector. This allows for easy insertion and removal of the device while maintaining a secure connection.

Charging Ports: Many consumer electronic devices use right angle pogo pins as charging ports. This enables a compact design that minimizes the amount of space taken up by the charging connectors.

 4. Medical Devices

Medical devices require high-reliability connectors, as poor connections can compromise the functionality and safety of the device. Right angle pogo pins are frequently used in:

Diagnostic Equipment: In diagnostic equipment, right angle pogo pins are used to create connections between different parts of the device or between the device and the patient. Their compact design ensures that the connectors can be integrated without taking up too much space, which is crucial in portable and handheld medical devices.

Wearable Health Devices: For wearable devices like heart rate monitors, smartwatches, and glucose meters, right angle pogo pins offer an effective way to charge the device or establish connections for data transmission while keeping the device compact.

 5. Industrial Applications

In industrial applications, right angle pogo pins are used in equipment where robust, repeated connections are required under harsh conditions. These connectors are typically used in:

Control Panels and HMI (Human-Machine Interface) Systems: Right angle pogo pins are used in industrial control panels to connect various components of the system, such as sensors, switches, or actuators, to the central controller.

Robotics: Right angle pogo pins provide a reliable way to connect different modules in robotic systems. They allow the connections to be made at angles that optimize space and mechanical stability.

 6. Prototyping and Development

When developing new devices or systems, engineers often rely on right angle pogo pins for prototyping. These connectors make it easier to create temporary, adjustable connections between various components without the need for permanent soldering.

Ease of Connection: Right angle pogo pins make it easy to establish quick connections during the prototyping phase. They can be used to test electrical pathways and ensure functionality before committing to more permanent connectors or soldering.

Test Fixtures: In prototyping labs, right angle pogo pins are often used to build custom test fixtures, allowing developers to test their designs efficiently.

Cnomax company's Right angle pogo pins are versatile, space-efficient connectors that offer several benefits, including improved mechanical stability, flexibility, and ease of integration in compact designs. These connectors are widely used in various industries, such as automated test equipment, battery testing, consumer electronics, medical devices, industrial applications, and prototyping. Their ability to maintain reliable electrical connections while optimizing space makes them indispensable in modern electronic designs, where performance, reliability, and compactness are key. By understanding the applications and advantages of right angle pogo pins, engineers can make informed decisions about when and where to use them, ultimately enhancing the performance and functionality of their systems.
